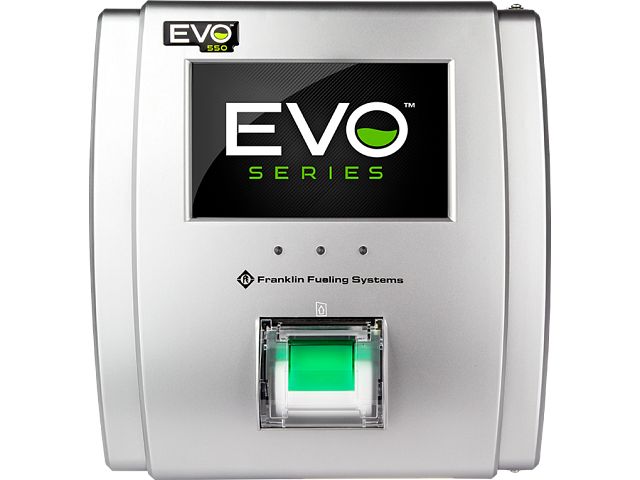

We are driven by our pursuit to innovate, simplify, secure, and connect every station owner to their fuel management system. EVO™ 550 and EVO™ 5000 ATGs feature simple setup and operation, remote connectivity, and advanced security features to protect your fuel system while keeping you directly connected to vital site data whenever, and wherever.
EVO™ 550 can support up to 36 sensors and 36 probes, while the EVO™ 5000 can support up to 72 sensors and 72 probes.
Enhanced remote pump monitoring and control including pump-in-water automation, clogged intake escalation, tank leveling, and tank priority.
The FFS PRO® Connect web interface allows users to securely connect directly to an EVO™ Series ATG from any web enabled device.
Inventory Reconciliation is an automated leak detection function that analyzes tank volume, deliveries, and sales data to detect releases with a high level of accuracy.
Eliminate discrepancies in delivery reporting and daily reconciliations caused by inaccurate tank information programmed into the ATG with this function that automatically generates a highly accurate tank strapping chart.
Electronic line leak detection (ELLD) learns the characteristics of each line, eliminating possible configuration errors and ensures unparalleled leak detection accuracy.
Continuously monitor double-wall piping, tank, and sump interstitial spaces to detect any potential leaks in these double-wall containments.
Get automated control of your Diesel Exhaust Fluid (DEF) system while preventing frozen lines with energy and cost-saving recirculation functionality.
EVO™ Series ATGs help keep sites in compliance while providing marketers with the highest level protection from the security threats facing our industry.
Turbine Pump Interface is a powerful tool that creates a network between your Submersible Turbine Pump (STP) controllers and EVO™ Series ATGs. Through TPI, the tank gauge can be programmed to respond to faults in the submersible pumping system and react with intelligence that pump controllers alone cannot.
When the water level in a tank approaches the pump intake, the tank gauge will enter alarm mode and automatically shut down the pump, protecting the system and consumers from water being pumped from that tank.
When managing two storage tanks of the same product ‘Leveling Mode’ can keep both tanks at the same percentage full without the use of a syphon bar between the two tanks.
By networking the intelligent controllers to the fuel management system via TPI, a technician can remotely connect to the site to review the logged event history and view the status.
EVO™ 550 and EVO™ 5000 ATGs offer additional advanced features and capabilites to manage your entire system as efficiently as possible.
Patented AutoLearn™ electronic line leak detection capability including Statistical Line Leak Detection for high throughput sites.
Proactively monitor for and remove corrosion-causing water from your fuel system with system automation and monitoring powered by EVO™ 550 or EVO™ 5000 ATGs.
Hardware auto-detection and wiring confirmation, multipoint tank charting, network printer auto-detection, and the ability to download and upload entire programming profiles from one ATG to another.
The EVO™ Series family of ATGs offers four different options with right-sized features to meet the requirements of your specific application, size, and compliance needs. Which ATG is right for your application?
ATG model, software and hardware options can be listed separately or combined when ordering. Systems shipped from the factory will list the combined part number. Complete part numbers have a specific order and are created using the following guidelines:
*Only one EVO-DIM or EVO-LON module can be installed per ATG.
Example: T550EDPMI/TRL = EVO™ 550 base model with display, with printer, with internal modem, with dispenser interface module, with SCALD, with reconciliation/autocalibration, and line leak detection.
| Model Number | Description |
|---|---|
| T5000E | EVO™ 5000 base model automatic tank gauge |
| T550E | EVO™ 550 base model automatic tank gauge |
EVO™ 550 and EVO™ 5000 ATGs come standard with the ability to perform in-tank static leak detection. The following software and hardware options can be added to customize your ATG. The internal hardware options will be factory installed when ordered with the ATG.
| Model Number | Description |
|---|---|
| EVO-DIMIB | (I) Internal dispenser interface module, dispenser interface cable must be ordered separately |
| EVO-LON | (E) EcheLON™ communication module, IFSF protocol capability |
| TS-MDMIB | (M) Internal modem, includes fax and data software capability |
| Model Number | Description |
|---|---|
| TS-CON | (C) Enhanced logic conditions including value, counter, value compare, and latch |
| TS-ELLD | (L) Electronic line leak detection |
| TS-ELLD-G | (G) Electronic line leak detection for generator applications |
| TS-SCM | (S) Secondary containment monitoring |
| TS-TRAC | (R) Tank inventory reconciliation and autocalibration |
| TS-TT | (T) Statistical Continuous Automatic Leak Detection, 24 hour continuous tank testing software |
| TS-FLOW | Flow rate monitoring |
| TS-TRAC-F | (F) Reconciliation/autocalibration and flow rate monitoring software |
| Model Number | Description |
|---|---|
| EVO-EXPC | Secondary console to add eleven additional plug-in modules to the primary TS-550, TS-5000, EVO™ 550, EVO™ 5000, EVO™ 600, EVO™ 6000 ATG, comes without a display or printer |
| EVO-EXPC2 | Secondary console to add six additional plug-in modules to the primary TS-550, TS-5000, EVO™ 550, EVO™ 5000, EVO™ 600, EVO™ 6000, comes without a display or printer |
