Discriminating Dispenser Sump

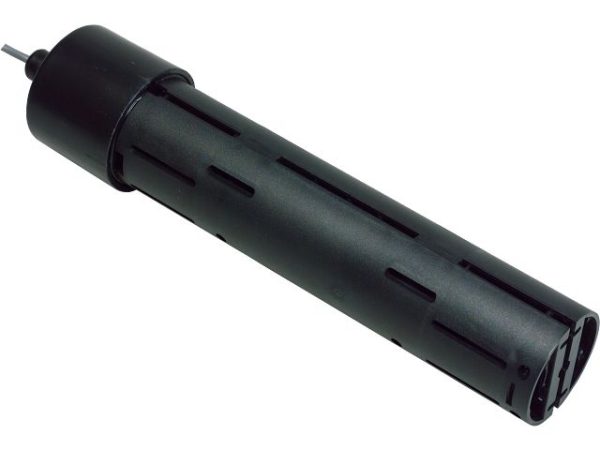

Discriminating Dispenser Sump Sensor

• Uses magnetic float switches to detect liquid at two levels.
• Innovative polymer strip detects hydrocarbons along sensor and floating on water.
• Compatible with common fuels and chemicals.
• Detects liquid at 1½” (38 mm) from base.
• Detects hydrocarbons on sensor and floating on water.
• Digitally encoded status information sent from microcomputer to ATG from 775+ feet (236 m).
• Alarms to indicate liquid in sump, hydrocarbon detected, sump is full, and sensor malfunction.
• TheFMP-DDS-UD model features an additional wire connection that can be used for adding a 2-wire simple apparatus to a system, such as an FMP-ULS, FMP-UHS, or FMP-HFS2, without having to pull additional wire from the EVO™ Series console to the sump. Software in the EVO™ Series console will recognize the additional simple apparatus and monitor both inputs.
• Variety of mounting methods possible depending on location. Bracket provided for quick installation.

Brochures

	Title	Type	Size
	FFS-0991 Discriminating Dispenser Sump Sensor (DDS) Datasheet.pdf	PDF	0.64 MB
	FFS-0635 Sensors Datasheet.pdf	PDF	3.12 MB
