Like our standard rigid probes, flexible inventory probes provide reliable and accurate inventory management for otherwise difficult installation applications. Available in lengths for tanks ranging from 4’ to 68’ (1,219 mm – 20,726mm).

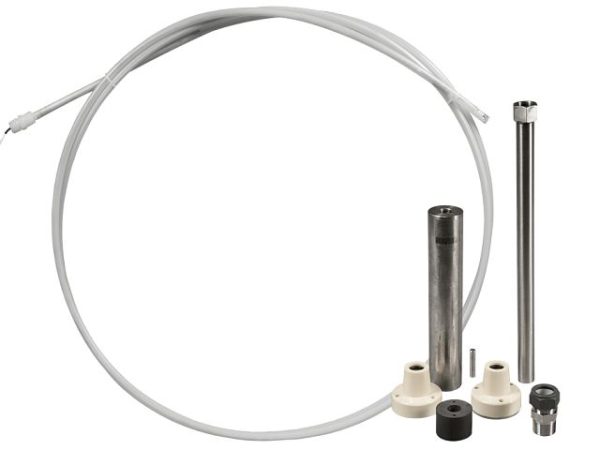

The flexible probe installation kit includes several design features which ensure accurate installation in large storage tank applications.
A 16” (406 mm) stainless steel sleeve guides the probe into place and ensures proper vertical alignment.
The adjustable compression fitting allows for variable height adjustment, giving you the ability to set the probe depth with precision.
The guides and fitting make sure that the probe is installed correctly, thereby ensuring accurate and consistent level readings.
The water and product level float kits are designed specifically to provide accurate inventory levels on flexible probes no matter what the application is.
Flexible probes can provide accurate inventory level management for up to 5,875,000 gallon (22,200,000 liters) tanks.
Each flexible probe comes with a stainless steel probe weight and pin to help keep the probe properly aligned in large storage tanks.
Float kits are available in 2”, 3” and 4” diameters for both diesel and gasoline float kits are available.
Flexible probes are ideal for aboveground storage tank applications where probes are installed at higher levels.
The flexibility of the probe allows the installer to take the entire probe to the top of the tank, uncoil it, and then install it.
A long rigid probe can be difficult and dangerous to position and install at large heights.
Transporting a longer rigid probe takes up significantly more space than a flexible probe.
Flexible probes make installing in spaces with little overhead clearance, like indoor generator tank applications, easy to carry out.
Fitting a rigid probe down into a tank indoors can be next to impossible, unlike flexible probes that can be installed with minimal space required.
A flexible probe can be uncoiled and fed directly into the tank within a small amount of space.
An included probe weight fits at the bottom of the probe and helps to pull the probe into place.
Contact your sales representative or customer service to place an order.
| Title | Type | Size | |
|---|---|---|---|
 |
FFS-0216 (UL) FFS Product Catalog.pdf | 62.67 MB | |
 |
FFS-0807 (EN) Product Catalogue.pdf | 48.43 MB | |
 |
FFS-0367 (UL) Site Starters Ordering Guide.pdf | 52.07 MB |
| Title | Type | Size | |
|---|---|---|---|
 |
TB0718-02 Removing the Flexible Prove Safely.pdf | 0.54 MB | |
 |
409710001 Flex Probe Installation and Programming Guide.pdf | 1.56 MB | |
 |
409710001FR r2 Flex Probe Installation and Programming Guide.pdf | 1.58 MB |
| Title | Type | Size | |
|---|---|---|---|
 |
CD_FMS_FMP-FLX-XX_001.dwg | DWG | 0.11 MB |
 |
CD_FMS_FMP-FLX-XX_001.pdf | 0.03 |
